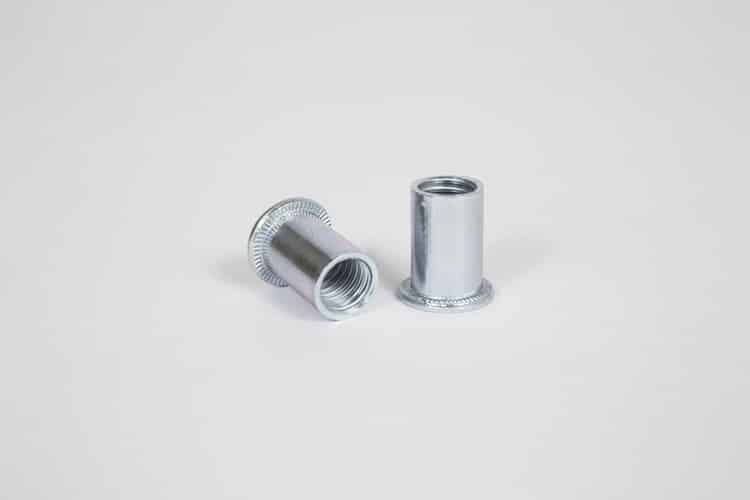

Aluminum cylinder head threaded inserts

Our range of threaded inserts ranges from standard products, cylindrical head, countersunk, reduced, to products for more specific applications, such as hexagonal, blind inserts, all available in aluminum, steel, and stainless steel. The production processes are followed step by step to ensure that the customer can be sure of choosing a totally “Made in Italy” item. We also produce special inserts according to customer’s specific requirements. In our catalog available online you can view the complete range of threaded inserts, with all the technical characteristics of the products. Our threaded inserts comply with UNI 9201, UNI 9202, UNI 9203 and UNI 9204 standards.

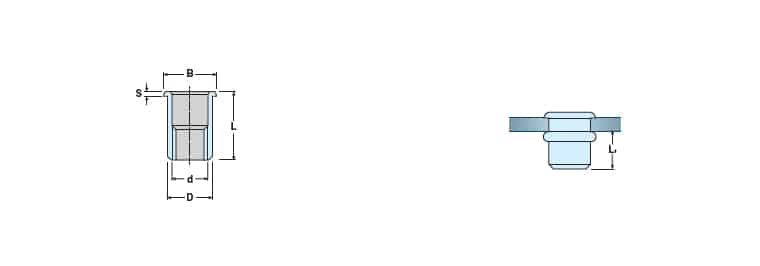

Technical drawing

Code	Description	d 6H	D(mm)	B(mm)	S(mm)	Hole(mm)	Thickness(mm)	L1(mm)	L(mm)	Box pcs.	Qty	Total number of pieces
Codice31M3TP-C	DescrizioneALUMINUM INSERTS M3TP SHORT	d 6HM3	D(mm)4,9	B(mm)7	S(mm)0,8	Hole(mm)5	Thickness(mm)0,3÷1,8	L1(mm)4,2÷4,6	L(mm)9	Pz. scatola1000	Qtà ALUMINUM INSERTS M3TP SHORT quantity	Nr. pezzi totali 0
Codice31M3TP-L	DescrizioneALUMINUM INSERTS M3TP LONG	d 6HM3	D(mm)4,9	B(mm)7	S(mm)0,8	Hole(mm)5	Thickness(mm)1,8÷3,0	L1(mm)4,2÷4,6	L(mm)10,5	Pz. scatola1000	Qtà ALUMINUM INSERTS M3TP LONG quantity	Nr. pezzi totali 0
Codice31M4TP-C	DescrizioneALUMINIUM INSERTS M4TP SHORT	d 6HM4	D(mm)5,9	B(mm)9	S(mm)1	Hole(mm)6	Thickness(mm)0,3÷2,5	L1(mm)5,5÷6,0	L(mm)11	Pz. scatola1000	Qtà ALUMINIUM INSERTS M4TP SHORT quantity	Nr. pezzi totali 0
Codice31M4TP-L	DescrizioneM4TP LONG ALUMINUM INSERTS	d 6HM4	D(mm)5,9	B(mm)9	S(mm)1	Hole(mm)6	Thickness(mm)2,5÷4,0	L1(mm)5,5÷6,0	L(mm)13	Pz. scatola1000	Qtà M4TP LONG ALUMINUM INSERTS quantity	Nr. pezzi totali 0
Codice31M5TP-C	DescrizioneALUMINIUM INSERTS M5TP SHORT	d 6HM5	D(mm)6,9	B(mm)10	S(mm)1,2	Hole(mm)7	Thickness(mm)0,5÷3,0	L1(mm)7,2÷7,7	L(mm)13	Pz. scatola1000	Qtà ALUMINIUM INSERTS M5TP SHORT quantity	Nr. pezzi totali 0
Codice31M5TP-L	DescrizioneM5TP LONG ALUMINUM INSERTS	d 6HM5	D(mm)6,9	B(mm)10	S(mm)1,2	Hole(mm)7	Thickness(mm)3,0÷5,0	L1(mm)7,2÷7,7	L(mm)15,5	Pz. scatola1000	Qtà M5TP LONG ALUMINUM INSERTS quantity	Nr. pezzi totali 0
Codice31M6TP-C	DescrizioneALUMINIUM INSERTS M6TP SHORT	d 6HM6	D(mm)8,9	B(mm)12	S(mm)1,5	Hole(mm)9	Thickness(mm)0,5÷2,3	L1(mm)7,6÷8,2	L(mm)14,5	Pz. scatola1000	Qtà ALUMINIUM INSERTS M6TP SHORT quantity	Nr. pezzi totali 0
Codice31M6TP-M	DescrizioneM6TP ALUMINUM INSERTS MEDIUM	d 6HM6	D(mm)8,9	B(mm)12	S(mm)1,5	Hole(mm)9	Thickness(mm)2,3÷4,0	L1(mm)7,6÷8,2	L(mm)16	Pz. scatola1000	Qtà M6TP ALUMINUM INSERTS MEDIUM quantity	Nr. pezzi totali 0
Codice31M6TP-L	DescrizioneM6TP LONG ALUMINUM INSERTS	d 6HM6	D(mm)8,9	B(mm)12	S(mm)1,5	Hole(mm)9	Thickness(mm)4,0÷6,0	L1(mm)7,6÷8,2	L(mm)17,5	Pz. scatola1000	Qtà M6TP LONG ALUMINUM INSERTS quantity	Nr. pezzi totali 0
Codice31M8TP-C	DescrizioneALUMINIUM INSERTS M8TP SHORT	d 6HM8	D(mm)10,9	B(mm)15	S(mm)1,5	Hole(mm)11	Thickness(mm)0,8÷3,5	L1(mm)9,5÷10,1	L(mm)17,5	Pz. scatola1000	Qtà ALUMINIUM INSERTS M8TP SHORT quantity	Nr. pezzi totali 0
Codice31M8TP-L	DescrizioneM8TP LONG ALUMINUM INSERTS	d 6HM8	D(mm)10,9	B(mm)15	S(mm)1,5	Hole(mm)11	Thickness(mm)3,5÷6,0	L1(mm)9,5÷10,1	L(mm)20	Pz. scatola1000	Qtà M8TP LONG ALUMINUM INSERTS quantity	Nr. pezzi totali 0
Codice31M10TP-C	DescrizioneALUMINIUM INSERTS M10TP SHORT F.12	d 6HM10	D(mm)11,9	B(mm)16	S(mm)1,7	Hole(mm)12	Thickness(mm)1,0÷3,5	L1(mm)10,7÷11,5	L(mm)19	Pz. scatola1000, 2000, 2000	Qtà ALUMINIUM INSERTS M10TP SHORT F.12 quantity	Nr. pezzi totali 0
Codice31M10TP-L	DescrizioneALUMINIUM INSERTS M10TP LONG D.12	d 6HM10	D(mm)11,9	B(mm)16	S(mm)1,7	Hole(mm)12	Thickness(mm)3,5÷6,0	L1(mm)10,7÷11,5	L(mm)22	Pz. scatola1000, 2000, 2000	Qtà ALUMINIUM INSERTS M10TP LONG D.12 quantity	Nr. pezzi totali 0
